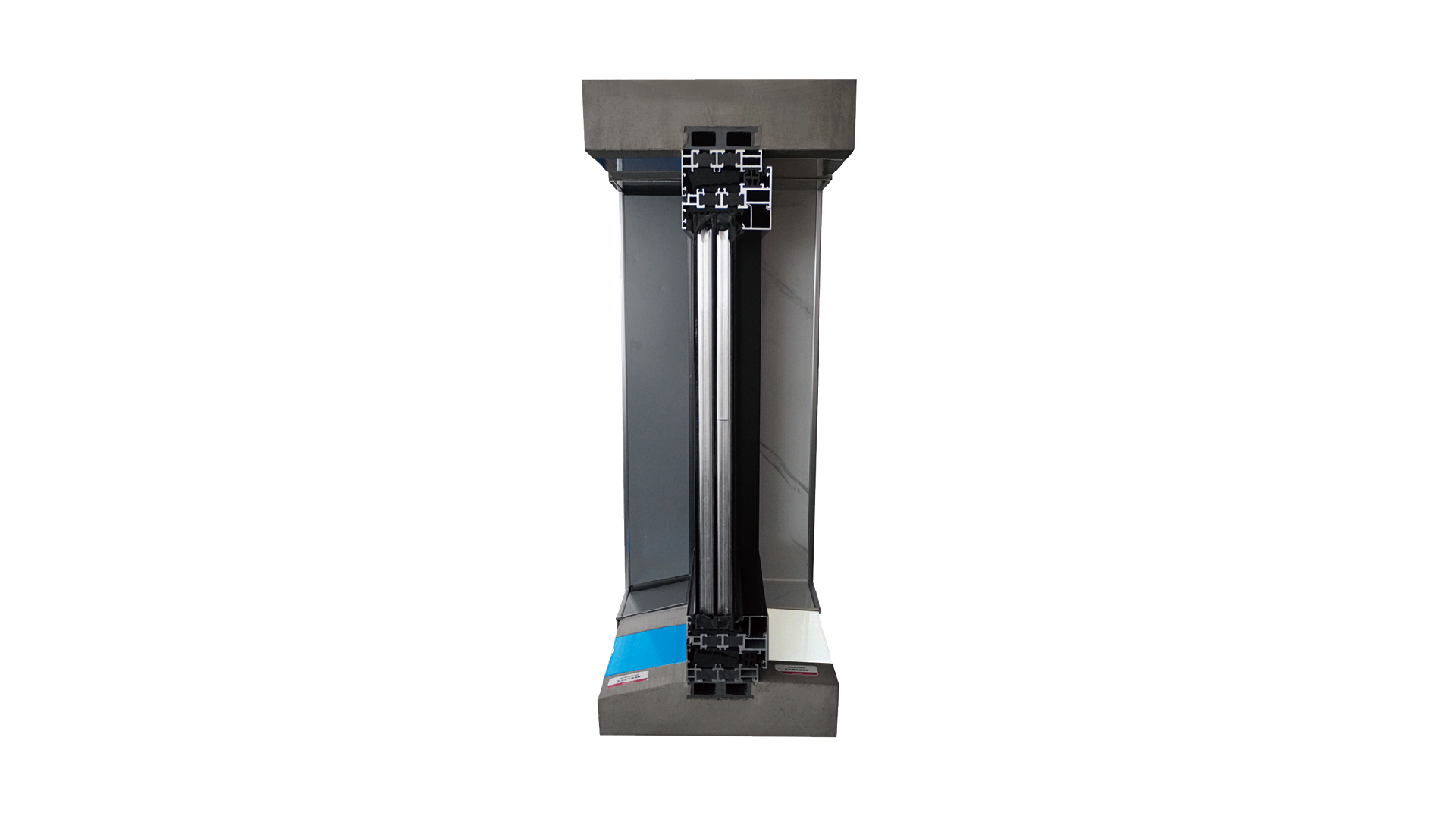

Waterproof Membrane
For waterproof and breathable liquid-applied membranes, the material with a higher water vapor diffusion resistance (Sd value) is installed on the interior side of doors and windows, while the material with a lower resistance is installed on the exterior side — effectively preventing water vapor from being trapped inside the system.
Key Features & Benefits
● Superior waterproofing and vapor permeability
● Simple and fast application
● Reduced labor costs
● Ensures project acceptance
Specification
| Parameter | Detail |
| 180° Peel Strength (kN/m) — Concrete board / Cement board / Composite subframe | ≥ 0. |
| 180° Peel Strength (kN/m) — Wood board / Aluminum alloy board / Plastic board | ≥ 0.6 |
| 180° Peel Strength (kN/m) — Silica-graphene board / EPS, XPS insulation board / Rock wool board / Polyurethane insulation board | Substrate failure, failure surface in insulation layer (foam) |
| Tensile Strength (MPa) | ≥ 6 |
| Elongation at Break (%) | ≥ 300 |
| Tear Strength (kN/m) | ≥ 20 |
| Water Vapor Permeability (Sd, m) | ≤ 0.8 |
| Water Impermeability (1000 mm, 20 h) | Impermeable |
| Air Permeability (mm/s) | ≤ 1.0 |
